Product Description

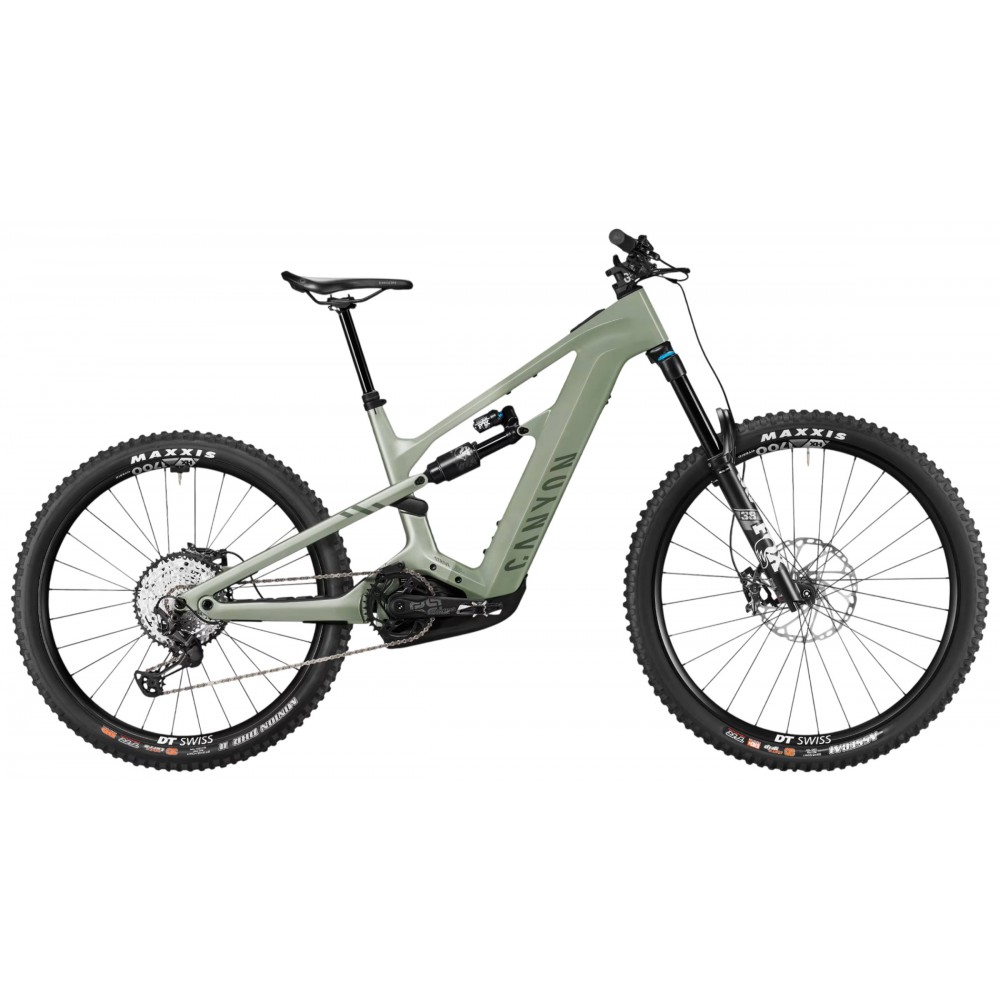

2027 CANYON STRIVE:ON CFR – FLAGSHIP EDITION
Unmatched CFR Engineering. Peerless Power. Pure E-Enduro Mastery.
The 2027 Canyon Strive:ON CFR is an uncompromising carbon electric enduro race machine engineered to compete and win at the highest level of world-class racing. Constructed from Canyon's flagship CFR-grade carbon fiber meeting rigorous Category 4e gravity testing standards, this e-MTB delivers maximum durability and agility. Powered by the race-proven Bosch Performance Line CX motor with 600W peak power and an integrated 750Wh Bosch PowerTube battery, and backed by a FOX 38 Performance Elite / X2 suspension combo and Shimano Deore XT 12-speed drivetrain, it sets the absolute benchmark for e-enduro performance.
Elite Features
- Unmatched CFR E-Enduro Frame: Engineered with Canyon Factory Racing's highest-grade carbon layup, balancing extreme stiffness, minimal weight, and Category 4e strength for world-class racing.
- Peerless Bosch CX Motor Power: Delivering up to 340% pedal assist and 600W peak power with smooth power output up to 120 rpm, including extended boost overrun for technical climbs.
- Long-Range 750Wh Integrated Battery: High-capacity Bosch PowerTube 750Wh battery seamlessly integrated into the down tube, offering quick on-bike charging or fast tool-less battery swaps.
- Pro-Grade FOX Suspension: FOX 38 Performance Elite Grip2 fork (170mm travel) and FOX X2 Performance rear shock tuned for aggressive singletrack speed and bottomless hit absorption.
- Shimano Deore XT 12-Speed Drivetrain & 4-Piston Brakes: Precise Hyperglide+ shifting paired with Shimano Deore XT M8120 4-piston hydraulic brakes and massive 220mm/203mm rotors for ultimate stopping confidence.
- Proven Long-Term Durability: Double-sealed pivot bearings filled with proprietary long-life grease, plus replaceable thread inserts at major pivot points for quick and simple maintenance.
Technical Specifications
| E-System & Power | |
|---|---|
| Motor | Bosch Performance Line CX, 600W Peak Power, 340% Assist |
| Battery | Bosch PowerTube 750Wh, Fully Integrated, Removable |
| Charger | Bosch 4A Fast Charger |
| Frameset & Suspension | |
| Frame | Canyon Strive:ON CFR, Carbon (CF), Category 4e Rated, 12x148mm Thru-Axle (3.57 lbs / 1.62 kg) |
| Suspension Fork | FOX 38 Performance Elite Grip2, 170mm Travel, 15x110mm Boost, 44mm Offset (4.75 lbs / 2.15 kg) |
| Rear Shock | FOX X2 Performance Air Shock |
| Drivetrain & Brakes | |
| Rear Derailleur & Shifter | Shimano Deore XT M8100 12-Speed Long Cage (0.62 lbs) & Shimano Deore XT SL-M8100 Shifter (0.3 lbs) |
| Cassette & Chain | Shimano Deore SLX CS-M7100 12-Speed (10-51T) & Shimano Deore M6100 Chain |
| Crankset & Chainguide | e*thirteen E-Spec Plus BOSCH Crankset, FSA Megatooth 36T Chainring, Canyon GP0437-01 Chainguide |
| Brakes & Rotors | Shimano Deore XT M8120 4-Piston Hydraulic, Shimano SM-RT66 Rotors (220mm Front / 203mm Rear) |
| Wheels & Cockpit Components | |
| Wheelset | DT Swiss HX1700 Aluminium, 30mm Inner Width, IS 6-Bolt, Spline Hub (Front: 15x110mm, 2.21 lbs | Rear: 12x148mm, 2.41 lbs) |
| Tyres | Front: Maxxis Assegai 3C MaxxGrip (2.5", 2.56 lbs) | Rear: Maxxis Minion DHR II 3C MaxxTerra (2.4", 1.98 lbs) |
| Handlebar & Stem | Canyon G5 Aluminium Handlebar (31.8mm clamp, 30mm rise) & Canyon G5 Stem (31.8mm clamp) with Canyon G5 Grips |
| Seatpost & Saddle | Canyon G5 Dropper Seatpost (30.9mm, Aluminium, 1.18 lbs) & ERGON SM10 EMTB Saddle (0.66 lbs) |
Pro Tech Tip: The Strive:ON CFR is designed with modular long-term protection. Every major pivot point features double-sealed bearings filled with proprietary grease and replaceable thread inserts, keeping frame wear easily repairable after extreme racing seasons.
Geometry & Sizing Chart
| Frame Size | S | M | L | XL |
|---|---|---|---|---|
| Body Height (cm) | ≤ 177 | 172 - 185 | 180 - 194 | ≥ 189 |
| Seat Height (mm) | 610 - 710 | 680 - 805 | 725 - 850 | 750 - 875 |
| Seat Tube Length (mm) | 395 | 420 | 435 | 460 |
| Top Tube Length (mm) | 584 | 610 | 637 | 665 |
| Head Tube Length (mm) | 110 | 120 | 130 | 145 |
| Head Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Seat Tube Angle | 78.0° | 78.0° | 78.0° | 78.0° |
| Chainstay Length (mm) | 445 | 445 | 445 | 445 |
| Wheelbase (mm) | 1245 | 1274 | 1304 | 1336 |
| Stack (mm) | 628 | 637 | 646 | 660 |
| Reach (mm) | 450 | 475 | 500 | 525 |
| Stand-over Height (mm) | 772 | 777 | 782 | 788 |
| BB Offset (mm) | 25 | 25 | 25 | 25 |
What's Included: Canyon Smallbox (includes Bosch 4A Charger, Canyon Shock Pump 300 Psi, Canyon Torque Wrench, 15mm Wrench Tool, Carbon Assembly Paste, Organza Bag, Reflector Set, Flat Pedals, and Quick Start Guide).
*Specifications are subject to change without notice. Canyon reserves the right to replace components with equivalents of equal or superior quality.
