Product Description

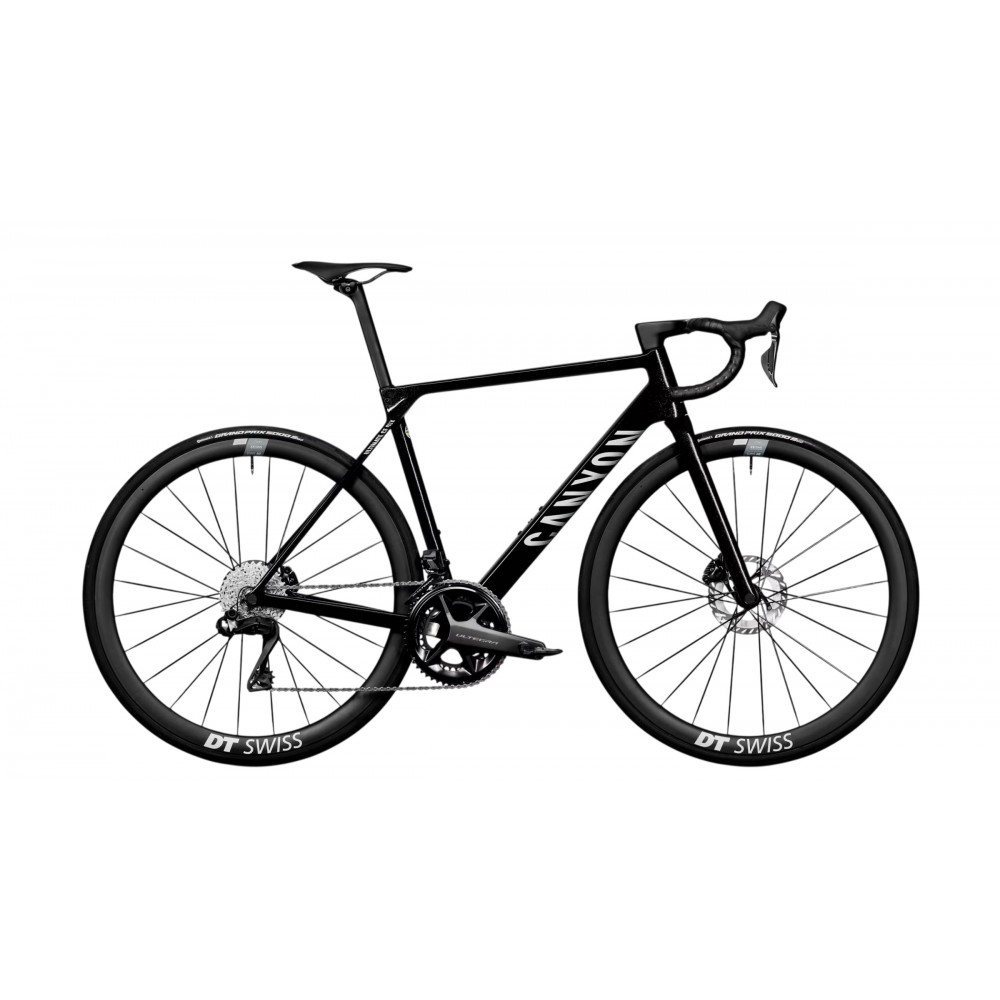

2027 CANYON ULTIMATE CF SLX 8 DI2 – RACE EDITION
All-Round Perfection. Iconic Performance. Integrated Precision.
The 2027 Canyon Ultimate CF SLX 8 Di2 is the ultimate road race companion engineered to conquer epic mountain passes, high-speed flats, and technical descents alike. Crafted with a premium high-grade carbon fiber layup (CF SLX), this machine achieves the ideal equilibrium between lightweight agility, supreme stiffness, and aerodynamic efficiency tested in partnership with Swiss Side. Equipped with the wireless Shimano Ultegra Di2 12-speed electronic groupset featuring an integrated 4iiii Precision power meter, DT Swiss ARC 1400 Dicut carbon wheels, and the customizable PACE Bar carbon cockpit, it delivers world-class competitive performance.
Elite Features
- High-Grade CF SLX Carbon Layup: Advanced carbon fibre blend combining low weight (frame only 2.07 lbs / 940g) and durability, derived directly from Canyon’s flagship CFR platform.
- PACE Bar Cockpit Integration: Award-winning adjustable carbon aero cockpit offering 50mm of width and 20mm of height adjustment (12 distinct positions) without cutting steerers or bleeding brakes.
- Aero Meets Lightweight Efficiency: Optimized frame profiles co-developed with Swiss Side wind tunnel experts, paired with a D-shaped carbon seatpost and integrated seat clamp to drastically reduce drag.
- Shimano Ultegra Di2 Electronic Drivetrain: Lightning-fast 2x12-speed shifting powered by the BT-DN300 internal battery, paired with hydraulic disc brakes for clinical control.
- Integrated 4iiii Power Meter: Comes pre-installed on the Shimano Ultegra crankset for real-time, precision power measurement during training and racing.
- DT Swiss ARC 1400 Dicut Carbon Wheels: 38mm deep-section carbon aero wheels offering low weight, excellent crosswind stability, and fast rolling with Continental Grand Prix 5000 S TR tubeless-ready tyres.
- Integrated Smart Axle Tool: Removable thru-axle lever doubles as a TX25 emergency adjustment tool stored discreetly inside the axle.
Technical Specifications
| Frameset & Cockpit | |
|---|---|
| Frame | Canyon Ultimate CF SLX, Carbon (CF), 12x142mm Thru-Axle, 32mm Tyre Clearance (2.07 lbs / 940g) |
| Fork | Canyon FK0146 CF, Carbon (CF), 12x100mm Thru-Axle, 1 1/4" Steerer, 32mm Tyre Clearance (0.81 lbs / 370g) |
| Cockpit & Tape | CP0048 PACE T-Bar Aero Carbon Cockpit (0.49 lbs) with Canyon Ergospeed Gel Tape |
| Seatpost & Saddle | Canyon SP0094 CF Carbon Seatpost (10mm Setback, 0.26 lbs) & Selle Italia SLR Advan Saddle (130mm, 0.42 lbs) |
| Drivetrain & Electronics | |
| Shifters & Derailleurs | Shimano Ultegra Di2 R8170 12-Speed Electronic, Front Derailleur (FD-R8150), Rear Derailleur (RD-R8150) |
| Crankset & Power Meter | Shimano Ultegra FC-R8100 52/36T with integrated 4iiii Precision Power Meter |
| Cassette & Chain | Shimano Ultegra CS-R8101 12-Speed (11-34T) & Shimano XT Chain |
| Bottom Bracket & Battery | Shimano Pressfit BB72 (PF 86.5) & Shimano BT-DN300 Internal Di2 Battery |
| Brakes & Wheelset | |
| Brakes & Rotors | Shimano Ultegra Di2 Hydraulic Disc, Shimano RT-CL800 Rotors (160mm Front / 140mm Rear, Center Lock) |
| Wheelset | DT Swiss ARC 1400 Dicut Carbon (38mm depth, 20mm inner width) | Front: 12x100mm (1.4 lbs) | Rear: 12x142mm (1.79 lbs) |
| Tyres & Thru Axles | Continental Grand Prix 5000 S TR (700x28c, 0.65 lbs) & DT Swiss Thru Axles (with removable integrated TX25 lever) |
Pro Tech Tip: The removable thru-axle lever doubles as an emergency TX25 tool that fits almost every bolt on the bike and clips discreetly into the wheel hub. Always ensure torque specifications are verified with the included Canyon Torque Wrench during full maintenance!
Component Geometry & Sizing Chart
| Frame Size | 2XS | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|
| Spacer Stack (mm) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Cockpit Stem - Width (mm) | 80 - [390-440] | 90 - [390-440] | 90 - [390-440] | 100 - [390-440] | 110 - [390-440] | 110 - [390-440] | 120 - [390-440] |
| Crank Length (mm) | 160.0 | 160.0 | 165.0 | 165.0 | 170.0 | 170.0 | 170.0 |
| Chainring Combination | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 | 52/36 |
| Seatpost Length (mm) | 349 | 349 | 349 | 349 | 349 | 349 | 349 |
| Max Seatpost Insertion (mm) | 195 | 195 | 195 | 195 | 195 | 195 | 195 |
What's Included: Canyon Smallbox (includes Canyon Torque Wrench, Carbon Assembly Paste, Organza Bag, Reflector Set, Category 1 Banderole, and Quick Start Guide). Note: Pedals are not included.
*Specifications are subject to change without notice. Canyon reserves the right to replace components with equivalents of equal or superior quality.
